Brand
Pixsys
SKU
2000.35.015
Category
Process Automation

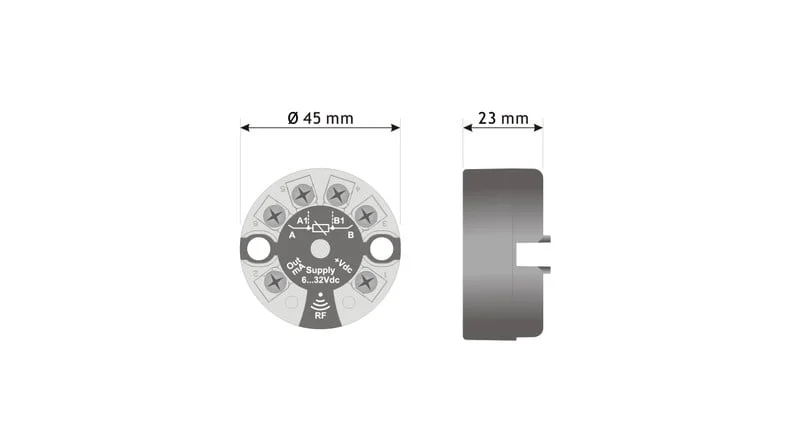

Technical Drawings
Click to enlarge
Installation

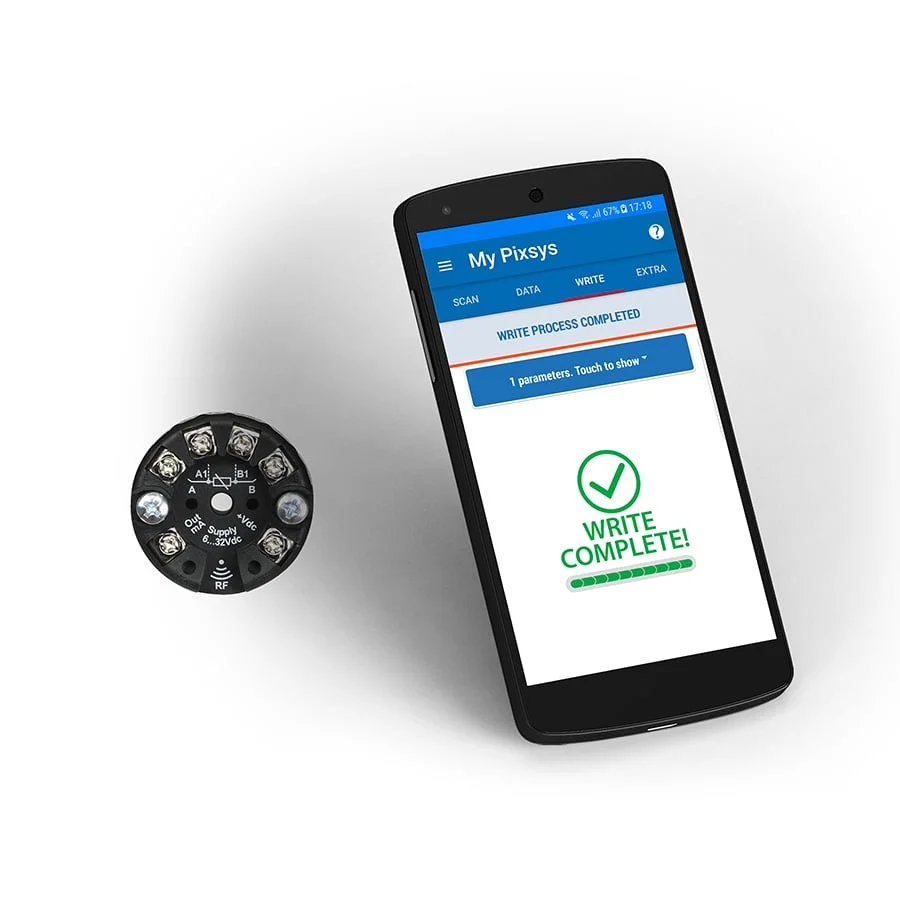

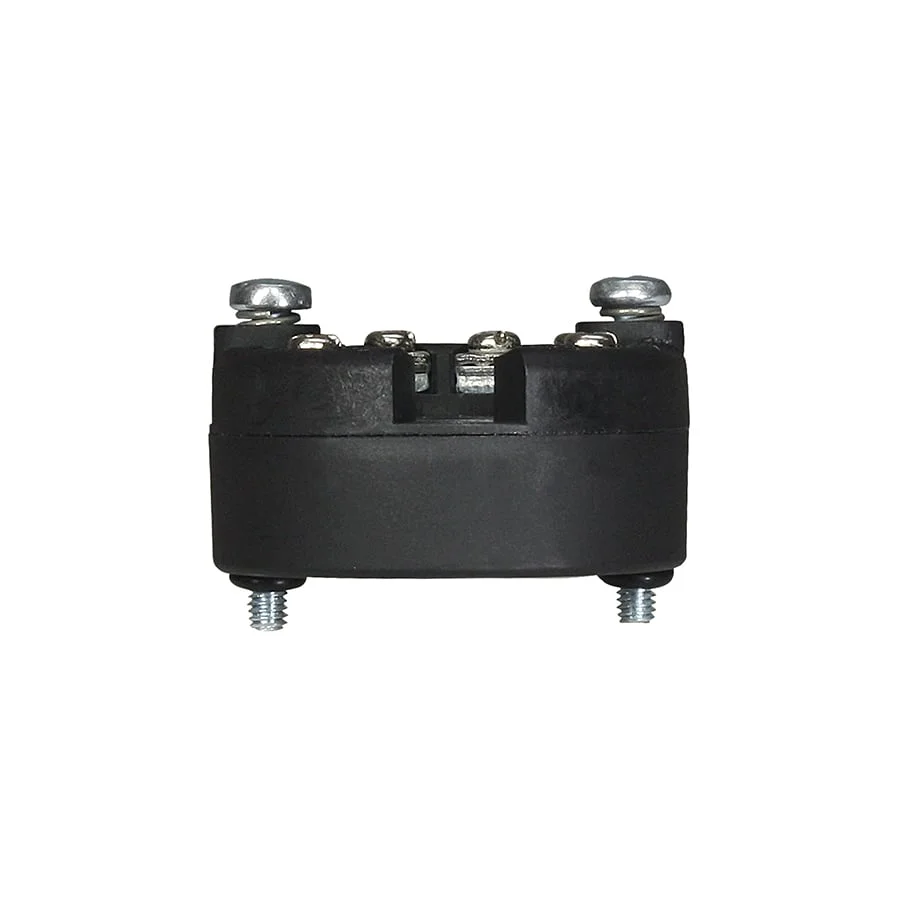

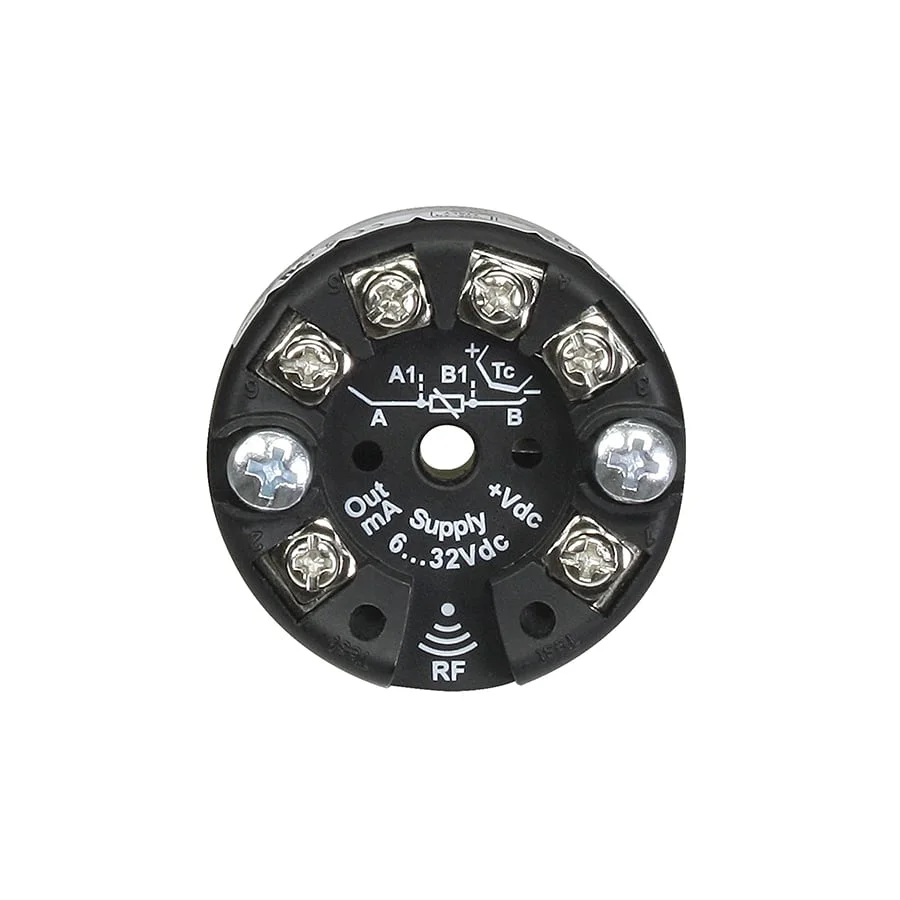

RFID TC-RTD CONVERTER 4-20mA
RFID TC-RTD CONVERTER 4-20mA
Price
Contact for Price
Request a quote for pricing and availability
Technical Specifications
| Weight | Approx. 30 g |
| Sealing | Box and terminal blocks: IP20 |
| Material | Nylon (PA66) |
| Rejection | 50-60 Hz |
| Dimensions | Ø 45 mm, 23 mm |
| Error Output | Selectable between 21,5mA or 3,8mA |
| Power Supply | Loop Power (2 wires connection) operating range 6-32 Vdc |
| Certifications | CE, UL |
| Analogue Inputs | 1 x selectable among Thermoresistances PT100, PT1000, Ni100 - 2/3/4 wires / 1 x selectable among Thermocouples K, S, R, J, T, N, B, E - Thermoresistances PT100, PT1000, Ni100 - 2/3/4 wires |
| Cable Resistance | Max 20Ω |
| Output Resolution | 2 μA |
| Over-Range Output | f.s. + 5°C |
| Under-Range Output | f.s. - 5°C |
| Data Logger Function | Tempo di campionamento 1..3600 S - 2800 campionamenti - buffer circolare |
| Operating Conditions | Temperature -40+85 °C, humidity 30..90 uR% |
| Sampling/Response Time | 300 mS / 600 mS |
| Max. Transmission Error | 0,1% f.s o 0,2°C |
| Temperature Coefficient | < 100 ppm |
| Current Output Protection | 30 mA |
