Brand
Nivelco
SKU
WPP-140-4
Category
Process Instrumentations
Subcategory
Non-Contact Radar

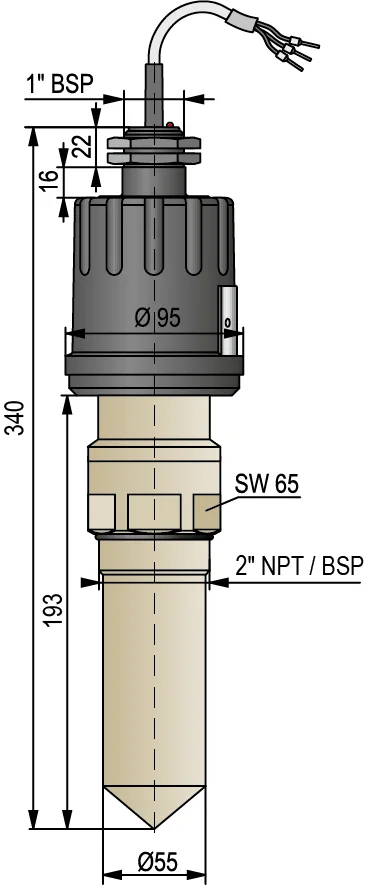

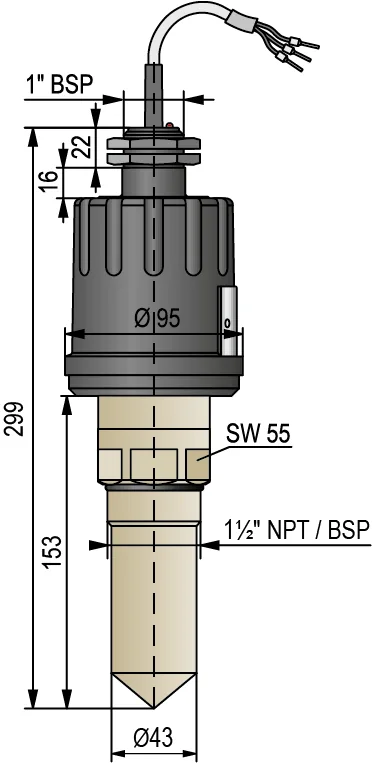

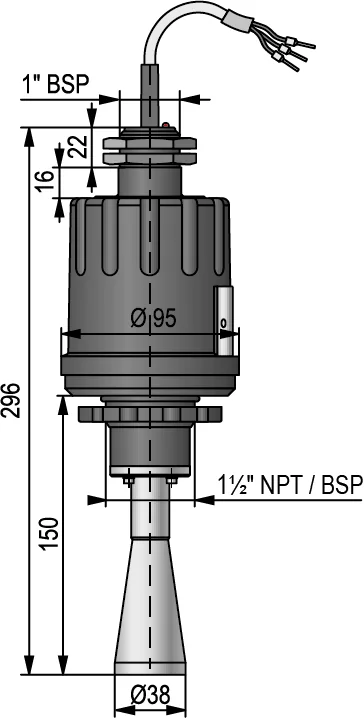

Technical Drawings
Click to enlarge

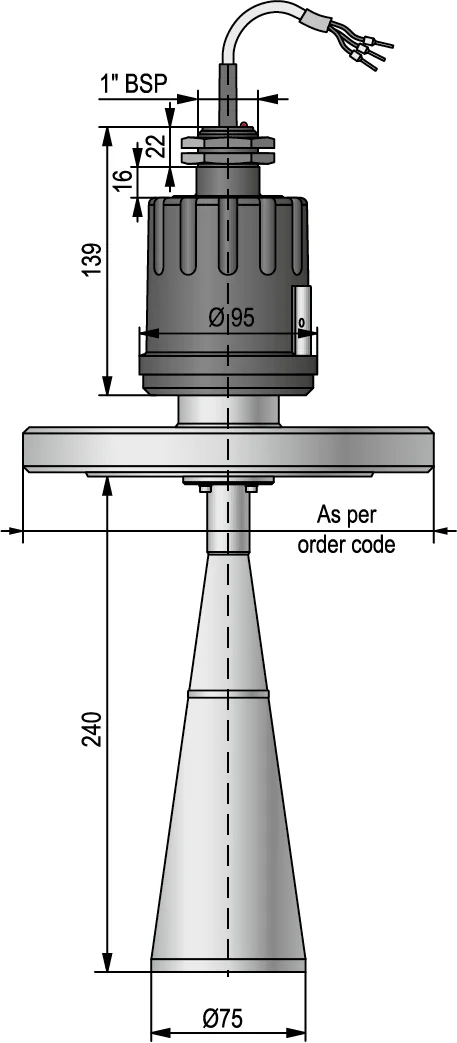

07_PiloTREK WPM-18x

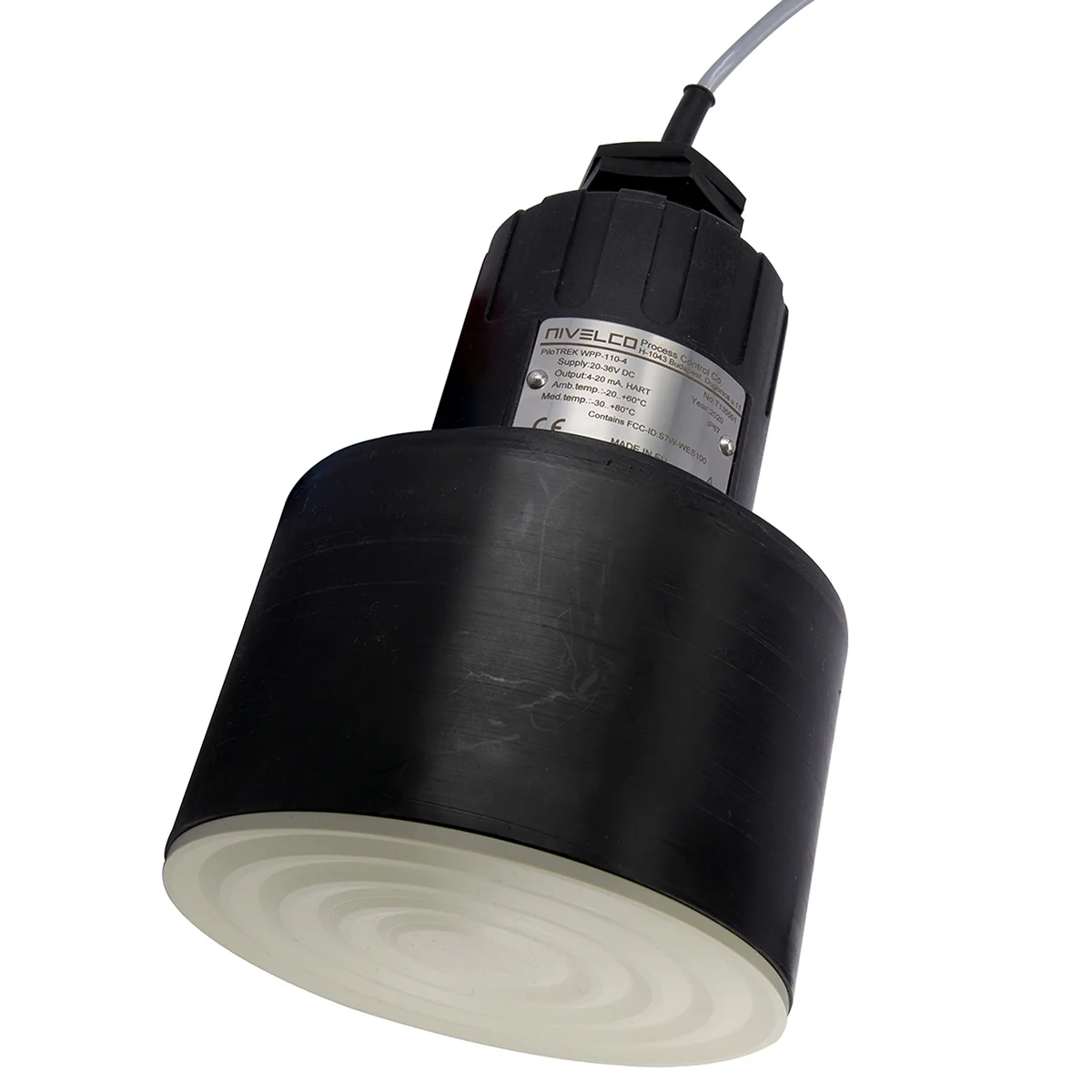

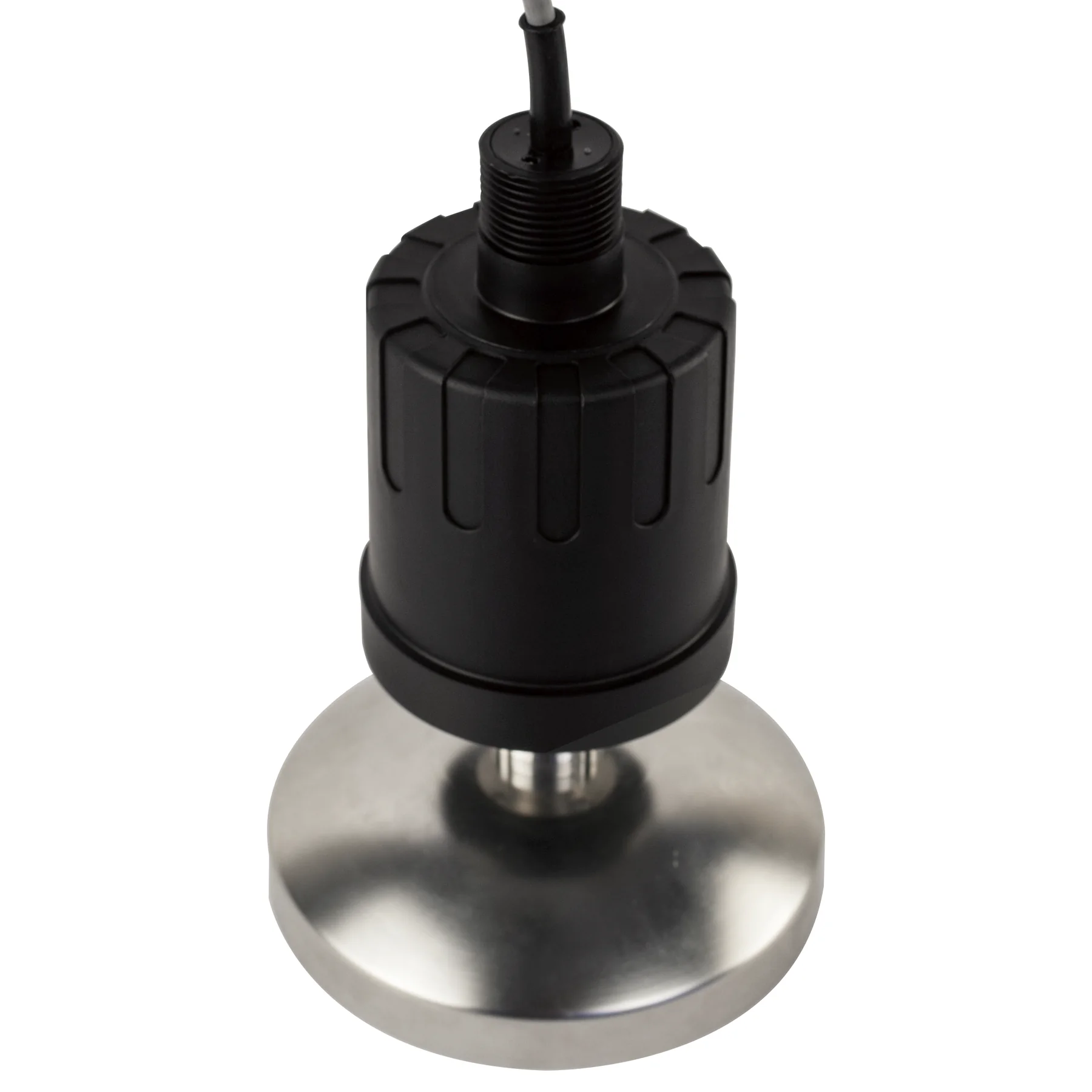

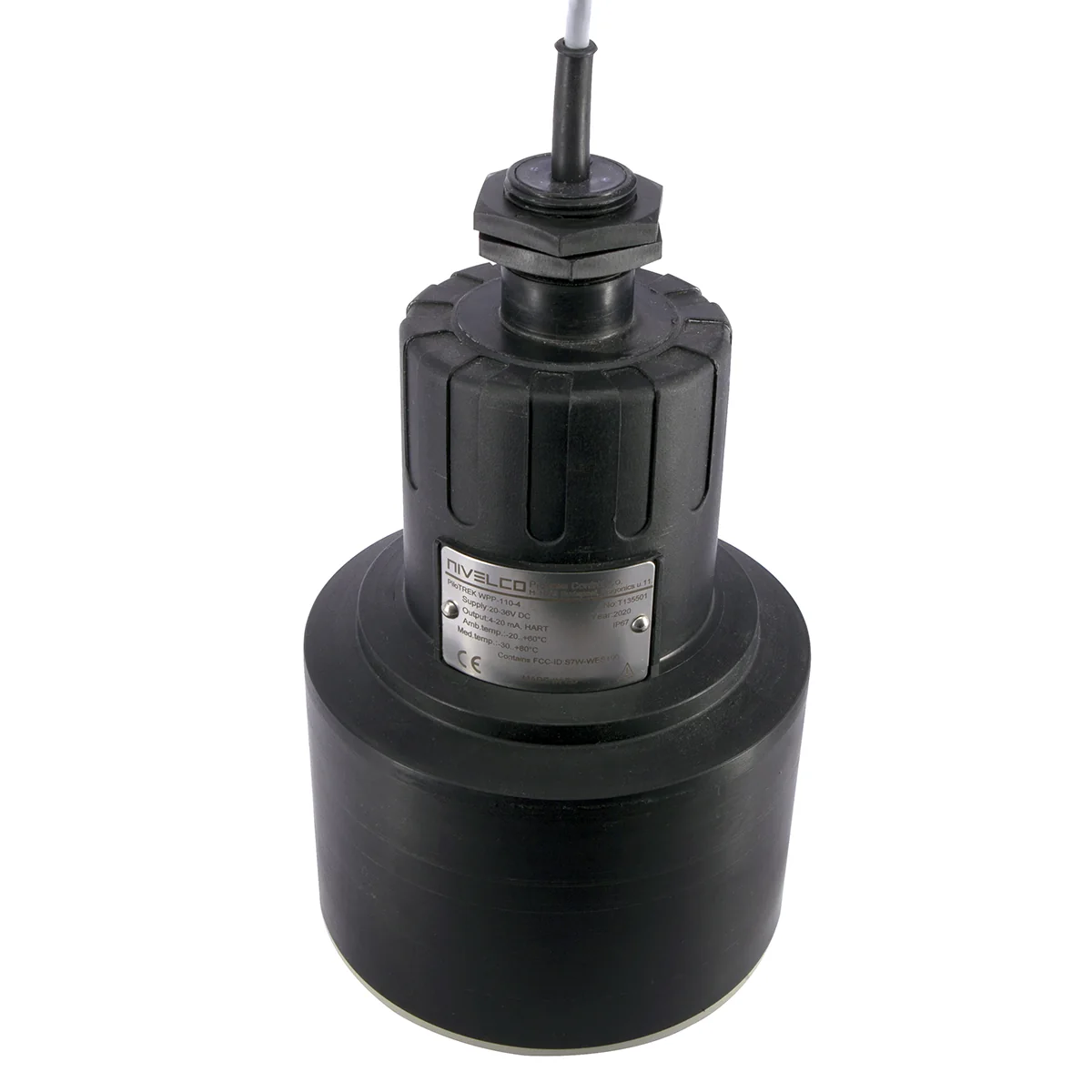

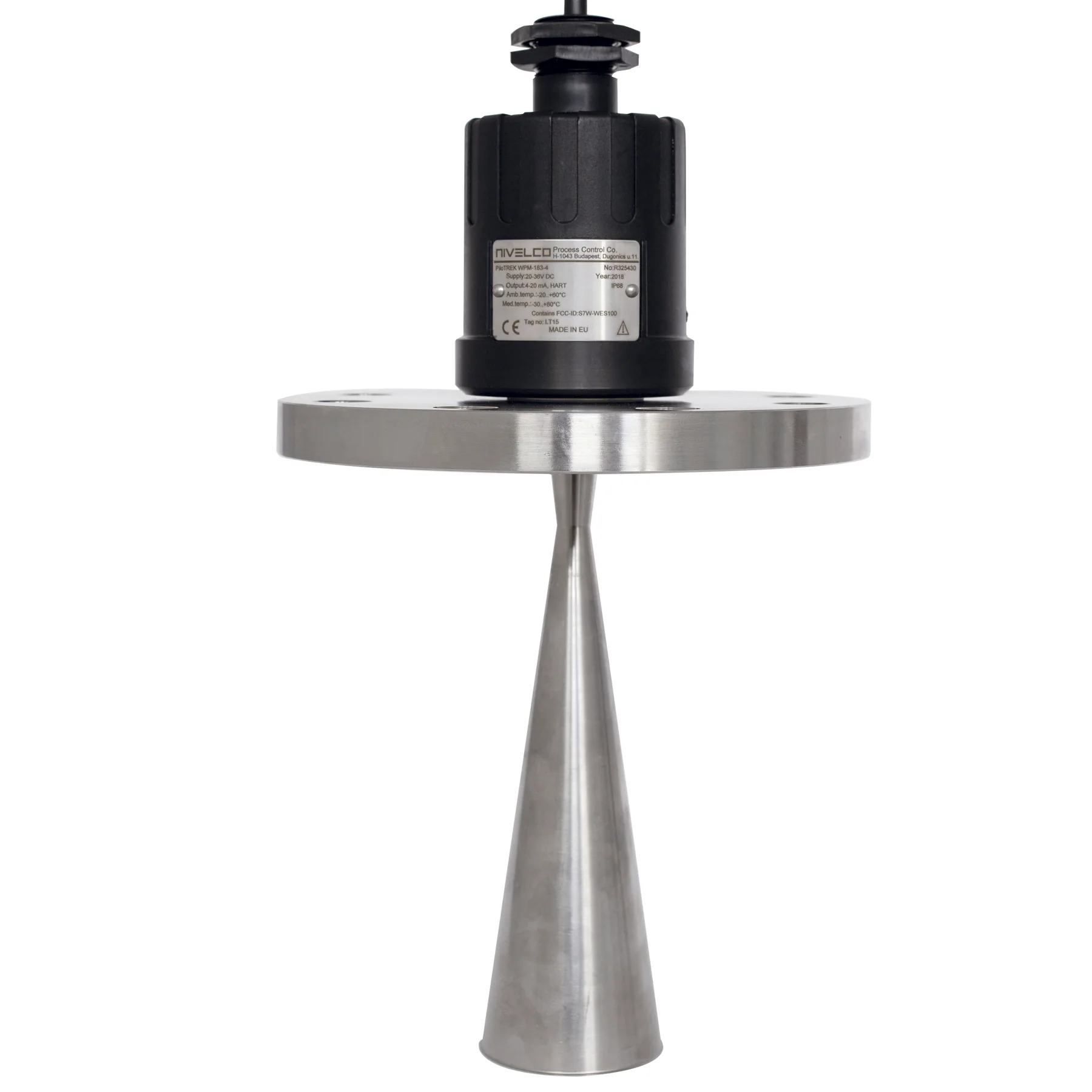

Nivelco WPP-140-4 - PiloTREK WP–100 – integrated
RADAR 25GHZ DN40 4-20mA + HART
Price
Contact for Price
Request a quote for pricing and availability
Product Features
- Plastic housing
- Horn or parabolic antenna
- Stainless steel or plastic-coated sensor
- Where IP68 is needed
- 2-wire transmitters
- 25 GHz (K-band) measuring signal
- Non-contact level metering
- Accuracy up to ±0.12"
- Measuring range up to 75 ft
- 99-point linearization
- PACTware™ compatible
- Explosion-proof variants
- 5 years warranty
- Level measurement of liquids, emulsions and other chemicals
- Food and beverage
- Chemical industry
- Oil industry
- Water / wastewater industry
